回覆 (176): 300B X 3 parallel SET full DIY amp
..
ThomasC2
11-08-02
11:17:03

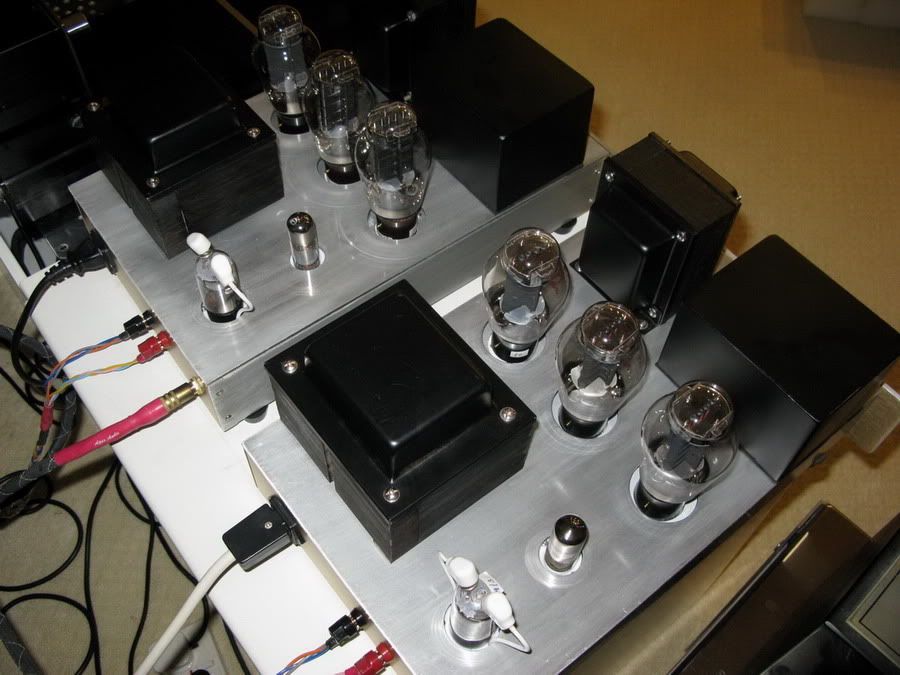

回覆 (175): 300B X 3 parallel SET full DIY amp
Have been listening to these newly completed amps for about 20 hours.

A full report with more photos and testing results can be found here : http://hk.myblog.yahoo.com/jw!aDpjOTKGE0Xz_lhz9EEe9A--

In case you would like to make any comments, please put it it here as I go there no more than once a year.

Special thanks again to mdlover who did the spectrum test for me.

ThomasC2
11-08-02
11:14:42
回覆 (174): Mistress vs. Hi Fi
quite 過癮!! I have never ever had so much bass at my den @@!!!
--------------------------------------------------

幾過癮!! 絕對過癮!!Very deep bass and smooth treble. But the mid and vocal ..............emmmmmmm, need a helping hand from the big brother 12.1!
bobui
11-07-28
13:02:08
回覆 (173): Mistress vs. Hi Fi
What amp did you use to drive the Leak 3090?
________

We start with the Parasound A21 with some insane bass guitar and Jazz piano music to run things in. The presentation is very decent, good transient response, never short of sustainable low and deep bass. Then we change gear to the EAR 549, more elastic bass with authority.

The high was very crispy and smooth as it has a true ribbon (short) tweeter. It projects a good 3D sound stage with load of inner details and air around instruments.

May be because of the speaker cable I use (Kimber 8TC), it's a little tense for classical music but for Jazz and Pop, quite 過癮!! I have never ever had so much bass at my den @@!!!
icefox
11-07-27
22:03:33
回覆 (173): Mistress vs. Hi Fi



Looks like the Leak troop from the Gingers' Camp will have to be deployed again after the long hibernation.


Photobucket


cpsjj
11-07-26
11:22:17
回覆 (172): Mistress vs. Hi Fi
revealing to mate it with Leak's own 12.1.
-----------------------------------------------------------

Oh yes, sure, why not for a family reunion. I am sure the Leak 12.1 would bring out the best of Leak 3090 or any sandwich speakers from Leak. Reason being the "sandwiches" are very light and fast which should compliment well with the not so hard kicking sound of valve amps.

Oh, a family photo is the warmest! What more could we ask for in life!
bobui
11-07-26
11:07:34
回覆 (171): Mistress vs. Hi Fi

What amp did you use to drive the Leak 3090?

It may be revealing to mate it with Leak's own 12.1.





limage
11-07-26
10:50:59
回覆 (170): Mistress vs. Hi Fi
What best to do on a hot summer day when your wife is not in HK and you are on annual leave? ............................Thats right, fiddle around with your 4 inches, 6 inches, 15 inches. Yes, you got it. Finishing what was left behind from my last visit and work my way up again. Yesterday, I felt like I was the most lucky man with the helping hand from icefox!

We took out the 4 and 6 inches drivers in the upper cabinet of the Leak 3090 and rewire, solder and clean up a few lose ends. And the Leak sandwich speakers can now live up to its reputation once again. No more off balance between the two channels and in the listening test, icefox even had the volume on reaching 2'clock playing Bob James, cucumber track 8 and another mad drum CD i have zero idea what it is except it was brutal and mad. Not a problem with the Leak 3090 la.

Leak 3090 final test report (max 5 star)
Treble: *****
Mid: ****
Bass: *****
Value for money: ***************
Overall: ****

And thanks to evil kong, large diawok and the Photographer for keeping me alive with nice food and endless blow water. Lovely!
bobui
11-07-26
10:04:41
回覆 (169): Svetlana SV811 Project update
Thanks ackcheng!

That My Ref amp does seem interesting....there was an assembled copy kit on taobao or ebay I saw a year ago or so (maybe still available)...It must be good otherwise it would have died out from the diyaudio forum long time ago....
CFT
11-07-25
11:24:29
回覆 (168): Svetlana SV811 Project update
hi CFT,

i have not tried gainclone so cannot really comment!

ackcheng
ackcheng
11-07-19
14:12:26
回覆 (167): Svetlana SV811 Project update
Thanks ackcheng~!
How different is My-ref vs gainclone, would you have the experience?
CFT
11-07-18
14:48:36
回覆 (172): Transistor or Valve
Looking forward to hearing your babe.
------------------------------------------------------

Thanks for your kind words. I only hope I won't disappoint the many high hands here and make them travel all the way just to listen to Lowther on a single connected system.

This system may appear to die hard valve guys who wants to be able to conduct fair comparsion with different valves rather than just different brands or makes. If this doesnt ring your bell, then may be my several turntables set up could interest you. how about my cooking?
bobui
11-07-18
13:18:03
回覆 (171): Transistor or Valve
Well done, bobui. Looking forward to hearing your babe.
Derek2A3
11-07-18
11:50:26
回覆 (170): Transistor or Valve
Here is the last photo. The main unit which some of you may have seen it before. There is a switch for 10db feedback or non. A swtich for DHT or indirect heat valves. A swtich for triode or pentode/Tetrode. Auto bias variable resistors range from 200ohms to 1,5K. Enough for nearly all valves except the transmitting family such as 845 or 811.

Because the power supply and main circuit stay the same. You can truely compare the sound of different valves or even different output transformers.

bobui
11-07-18
11:05:18
回覆 (169): Transistor or Valve
The rear end of the power supply. See the swtiches and the 6 little holes. thats for adjusting Faliment voltage.

The power supply also has a build in delay swtich. When main power swtich on, B+/HT voltage will delay for 3 minutes to protect precious DHT valves such as the PX25s, CX350 and of course, the 300Bs. The square shape light swtich allow you to manage the HT delay in manual as you wish.
bobui
11-07-18
10:51:00
回覆 (168): Transistor or Valve
Here is the full set, power supply and main unit. "Warming the cat". You seeing 2A3s.
bobui
11-07-18
10:43:36
回覆 (167): Transistor or Valve
Since I live so far away from civilisation, here I can post more photos of my current set up. So you know what you can expect for a visit at my den I eventually want to set up soon fro high hand friends and Dr's.

Sometimes, "What you see is what you get".

Look like a transistor amp, may be 50Watts or so! No sorry to have disappointed you. Its the dual mono power supply for my universial valve Push Pull power amp. Closer to you are two C-core transformers in horizontal and then further down the middle are two Gardener C-core chokes, The circuit boards in upright positions near the rear are 6 faliment regulators circuits meaning each output valves can have seperate faliment DC supply. The actual regulators are located on the two heat sinks on both sides.

HT/B+ Voltage selection swtiches are located at the outside rear, option range from 250V to 500V and faliment voltage range from 2 to 7.5V.

The main unit also allow to plug in different output transformers to mate with valves impedance and output power rating. Currently I can offer 6 transformers to choose from. Lowest 3.5K to highest 9k, Partridge, Sansui, Luxman, Sowter, Tango, UTC, Leak...

So, if any of you have quad set of valves you want to test sound and make comparsion. All you need is to bring them over and a few clicks at the rear of the power supply is all that is needed.

For instance, if you want to compare let say, PX4 vs 2A3 or 300B vs PX25 or 10Y vs 45. Easy, no soldering needed at all. How about 6V6 vs KT63? Its fun!
bobui
11-07-18
10:37:37
回覆 (166): Svetlana SV811 Project update
For those who are interested, you can download free audioXpress megazine here

http://www.mygazines.com/issue/34565

ackcheng
11-07-17
23:01:44
回覆 (165): Svetlana SV811 Project update
are you a 78 listener ?
----------------------
I dont have many and i know nothing about mono. May be eight to ten 78's and twenty 33 1/3 mono. Fo instance, some guys told me the Annie Fischer below is very hard to get! Serious, thats not really what I care! All my mono are Classical and mostly paino because thats what i listen all the time. I really is a new comer to mono. Yes, I am planning to go a little deeper with what mono can offer. I am reading books and learning!


bobui
11-07-15
17:52:33
回覆 (164): Svetlana SV811 Project update
I have a TANNOY Cartridge !
---------------------------------------

Oh, yes, I can finish this preamp real quick in 3 weeks. I very much love to have you and perhaps a few more high hands to tell me the difference when switiching the bass cut etc. for different mono record standard.

The chassis look so nice and in mint condition! Not dog meat at all! Tannoy fans would love it at first sight!
bobui
11-07-15
17:25:43
回覆 (163): Svetlana SV811 Project update
Here is the chassis. A Tannoy studio preamp and I have two, so one for each channel
=====================================================

Holy shit ! we need to get together ! I have a TANNOY Cartridge !
daiwok
11-07-15
17:21:27
回覆 (162): Svetlana SV811 Project update
The mono project is interesting, but not many people listen to 78's. The golden age of MONO was the introduction of the microgroove where a .7mil stylus could be used which is the industry standard for stereo today as well. I believe this introduction was the same time as Stereo birth and RIAA in 1958. So to be honest, if you listen to Mono with microgroove from 1957 it is unlikely you need to tinker the sweeps too much and especially the curve for 78's is more important - bobui are you a 78 listener ?
daiwok
11-07-15
17:20:33
回覆 (162): Svetlana SV811 Project update
Here is the chassis. A Tannoy studio preamp and I have two, so one for each channel. I am building two wooden outer boxes for them. These may actually complete earlier than the 811 power amp in a few weeks.



bobui
11-07-15
17:19:12
回覆 (161): Svetlana SV811 Project update
I have two projects on the move. This is another one. A dual mono preamp with all the mono settings include Columbia, AES, CCIR, Columbia 78, DECCA FFRR, EMI78 and London 78 and of course the RIAA. Two seperate settings for the 318 time constant and treble ed-emphasis. Run on a 6SL7 and hald 6SN7 or 6J5 per channel. There is also a 1590uf bass cut switch.

Show you guys the chassis later!
bobui
11-07-15
17:10:45
回覆 (160): Svetlana SV811 Project update
Happy Day! Thesse came through the post today. Just look at the sizes compare with an Original GEC KT88.

The larger transformers seconday is 520V max and into DC would be roughly 700DCV. The smaller size two are for LT left and right.
bobui
11-07-15
16:48:17
回覆 (159): Gold Ginger Photographer!

>I thought that is what everyone does, so I decided to join @[email protected]<
_______________________________________________

Looks like you have come to the right place then ;-)


thekong
11-07-12
08:33:05
回覆 (158): Gold Ginger Photographer!
>It's brag and banter and enough bullshit to sink a battleship.<
___________________________________________

So, it is pretty much like the yumcha every week ;-)
==============================================

I thought that is what everyone does, so I decided to join @[email protected]
daiwok
11-07-11
22:27:52
回覆 (157): Gold Ginger Photographer!
It's brag and banter and enough bullshit to sink a battleship.
-----------------------------------------------------------------------------

see you at 樂壽酒家in JUST 5 days!
bobui
11-07-11
21:10:38
回覆 (156): Gold Ginger Photographer!

>It's brag and banter and enough bullshit to sink a battleship.<
___________________________________________

So, it is pretty much like the yumcha every week ;-)

thekong
11-07-11
17:01:29
回覆 (156): Gold Ginger Photographer!
, you'll know what I mean. It's brag and banter and enough bullshit to sink a battleship.
------
国情吗!
drwkng
11-07-11
17:01:23
回覆 (155): Gold Ginger Photographer!


fun is fun! bullshit...................tell us more when you feel like!
________________________________

When you join our excursion next time, you'll know what I mean. It's brag and banter and enough bullshit to sink a battleship.


limage
11-07-11
16:52:19
回覆 (154): Gold Ginger Photographer!


how did it compare to this system that we heard
________________________________________

There is a long way to go before Mr. Wang's horns can come near this Horn Invincible!

But then, it's rare to find good sounding horns than poor sounding LS3/5A's, you see.


limage
11-07-11
16:32:23
回覆 (153): Gold Ginger Photographer!
>One of the best horn system I've heard........<
_______________________________________

Limage, how did it compare to this system that we heard before:


thekong
11-07-11
15:52:51
回覆 (153): Gold Ginger Photographer!
Lots of bullshit and lots of fun!
-------------------------------------------------

fun is fun! bullshit...................tell us more when you feel like!

I was so excited to suggest to meet with Kong and friends over sat. 樂壽酒家 earlier last week and only then find out there would be no set up lor. Hope to see you soon!

High power valve amp set up is hard to get by nowadays. My child like behaviour were all over the place at Kong's den.
bobui
11-07-11
15:52:14
回覆 (152): Gold Ginger Photographer!


You bet.

One of the best horn system I've heard and great hospitality. Lots of bullshit and lots of fun!


limage
11-07-11
15:40:47
回覆 (152): Gold Ginger Photographer!

>14A is surely not enough la. and the whole system including preamp, the ESL57, turntables, corssover, etc. <
_____________________________________________________

Oh yes, forgot to mention my line stage uses 2 KT77 and 6 12AX7 in the power supply, and another 8 small signal tubes (4 6922, 2 12AX7 and 2 6SN7) in the amplification stage!

Fortunately, the phono stage and Xover are SS!


thekong
11-07-11
15:36:40
回覆 (151): Gold Ginger Photographer!
Limage,

How was the trip? Accomendation good? Some massive looking horns, a Goldmund turntable, dcs, open baffle etc. Lots of fun?
bobui
11-07-11
15:29:18
回覆 (150): Gold Ginger Photographer!


No need to worry bobui. Audiophiles usually have 4 sockets of 13A each for audio use as the minimum. That's more than 10,000 watts available.


limage
11-07-11
15:01:18
回覆 (149): Gold Ginger Photographer!
64 6550s plus 36 small signal tubes!
------------------------------------------------------
Thats a lot of 6550sssssssssssss. Triode or tetorde connected, 64 X 30W gives you 1,920W already. Plus let say 3ma each section of what ever 5751 or 12AU7, 5965 etc. Together with transformer loss. Idle vs. max in AB1 operation, faliment current etc. You are talking no less than 3,000Watts.

(What i didnt break down earlier is that each 6550 or KT88 consume around 10W of power for faliment, ah! ). Each 6550 or KT88 actually consume 40W of power total! Yes, excatly equal to a 40W 220ac light bulb in terms of heat disspate.

So, just for all the power amps, roughly 3,000Watts divided by 220ac. Thats roughly 14A continous plus.

What more scary is that some manufactuers actually run their design to full or near full on the KT88 or 6550 ORGINAL desgin spec meaning roughly 45W exclude faliment power. Thats another 10% on top on the above calculation.

14A is surely not enough la. and the whole system including preamp, the ESL57, turntables, corssover, etc.

"Size does matter and that's what matter most"
bobui
11-07-11
14:38:39
回覆 (148): Gold Ginger Photographer!
I don't know ..... I have too much power with my 2W amps at home !
----------------------------------------------------------------------------------------------
2W! I have experienced a 2W amp sound so much nicer than an amp with 15W on my Lowther. Not necessary a 15W amp wounld never sound good with my Lowther, of course!

Wish you were there! I really am ENCOURGING icefox to dig out his PX4s and I supply the amp. Help me, will you?
bobui
11-07-11
13:51:31
