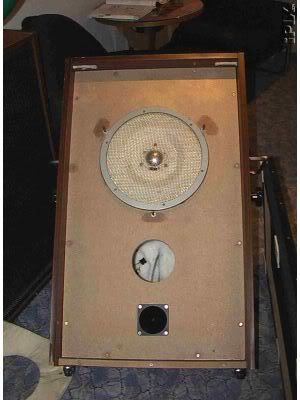

| the Schulz th315 was not sold as separate parts but rather housed in studio speaker directly sold to government studio and broadcast station. and orignally it was not meant for open baffle, but a rather large simple bass reflex cabinet, but my friend niko had the chance to compare and listen to both and he swears by open baffle |
|
|
 |
|
Welborne
|
09-02-16
13:25:10
|
|
|
Welborne
|
09-02-16
13:21:53
|
| 回覆 (192): DIY 自作派同好同學會 |
| i hate these crossover because for so many years i have been a beleive of crossoverless speaker drivers such as the saba. |
|
|
 |
|
Welborne
|
09-02-16
13:19:56
|
| 回覆 (191): DIY 自作派同好同學會 |
see one picture of the crossover which is similar to mine (this pic is from my friend Niko's website).
I have the official circuit diagram and i hope someone can tell me which parts are speaker protection circuit so that whe i have them rebuilt i can leave that out.
The actual filter parts are rather simple from my limited knowledge when i looked at the diagram. The high pass is a simple first order with a cap and a resitor for level adjustment, and the low pass is a second order with an inductor in series and 50uf electrolytic caps parralleled.
I was told there is also some equalisation parts built in the network by one guru but i can't tell, may be someone smarter here can shed some lights? |
|
|
 |
|
Welborne
|
09-02-16
13:18:45
|
| 回覆 (190): DIY 自作派同好同學會 |
dear guys, thursday is best for me from afternoon til late as dinner. And also for Vash's loudness preference, it is better to be in the evening otherwise next door will complain haha. Last time was lucky..^^ But if we don't need to play VVeerry loud, then anytime is okay la.
I am usually free on Wednesday night, but this wednesday i will visit dr.king and learn a trick or two about measuring room acoustic and how to use RTA from him, or may be he can come along with you guys too? |
|
|
|
|
Welborne
|
09-02-16
12:22:44
|
| 回覆 (189): DIY 自作派同好同學會 |
Dear Gingers,
Noted with thanks. As it's highly praised by my mentor, i will try to get one. |
|
|
|
|
jcml
|
09-02-16
10:11:25
|
|
|
Vash
|
09-02-16
08:29:39
|
| 回覆 (187): DIY 自作派同好同學會 |
| very interesting to find that my friend in Germany saw my saba baffle (well it was him who told me some great thing about the saba coax) and did something similar with rarer Siemens 25cm fullrange and self-made coaxial. You can see he also has the same Schulz th315 coaxial driver baffle with 18" woofer as I do, it was also him (his name is Niko) who shared with me generously his experience. The Schulz combo is currently Niko's reference i think |
|
| http://www.german-vintage-loudspeakers.com/navid.1/home.htm |
 |
|
Welborne
|
09-02-16
03:36:31
|
| 回覆 (186): DIY 自作派同好同學會 |

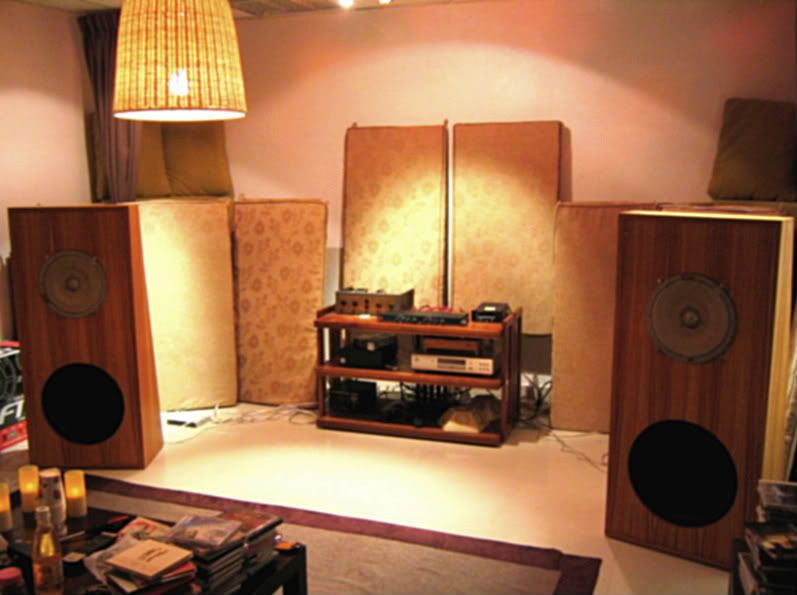

And those are not "bed mattress" on the back in case one suspected that my studio is built inside a mattress factory...haha. Those are my feeble attempt to fight early room reflection and echo with low budget and diy spirit. They are actually 2" high density acoustic fibre glass pad bought from Mongkok Butt Street, each piece is 2 feet x 4 feet x 2 inches and cost about $35/pc. you can expose the fibre glass to air as they are absolutely bad for your lung, so i made some fabric bags to put them in. But i picked the wrong fabric pattern this time and i thought they look rather ugly and girly. Anyway, will try to make some new one in the future....
|
|
|
|
|
Welborne
|
09-02-16
03:30:25
|
|
|
Welborne
|
09-02-16
03:24:11
|
| 回覆 (184): DIY 自作派同好同學會 |
Vash and rcwy,
I have just completed my second baffle (this one is supposed to be my main baffle, the saba one was an experiment out of the blue but the result surprised me) with a 18" woofer dipole driven by active crossover at 110 hz.
The driver on the top are the famous and rare east german recording studio monitor used in the GDR era back in around 1960-1980s and was the professional standard in the main and majority studio and broadcast monitoring. They are the Schulz TH315/1, 12" coaxial with 5 inch aluminium dome tweeter with hugh alnico magnet. There is a crossover around the magnet which is rather complicated and consisting of many old caps. I feel this need some upgrade especially those electrolytic caps on the low pass filter. This is the second pair i have owned, the last pair i had was sold to a retired german recording engineer who also told me Mr. Neumann, the famous microphone maker, also uses Schulz coaxial as one of his tools in design.
The 18" woofer dipole use the super value Celestion 18" with 97db sensitivity.
For the schulz, i use the same old Eico HF-81, and for the low, i have an tripath based pop-pulse with 70w into 4ohm. Active crossover is the very neutral sounding if not exotic DBX brand 2-way active.
This is the first time ever in my life dealing with active crossover. A lot of headache fine tuning the xover frequency and output level of top and bottom.
I spent the whole afternoon at my studio today. This new baffle surely can play up to "vash's loundess standard" i feel. But i am still having a hard time fighting with the room acoustic of my rather squarish room. Anyway, i thought i post some pictures here to share.
